Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

Name: Single Double Screw 260kgH Capacity Efficient PP Strapping Band Extrusion Line 519mm Longer Length
Brand: JIATUO CHINA
Price: 1 USD

Quality Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length for sale

Brand Name : JIATUO CHINA

Model Number : JTPP-110

Certification : IS CEO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 30-40days

Packaging Details : plastic film

Product Name : PP Strap Band Extrusion Line

Total Power : 100KW

Video outgoing-inspection : Provided

Strap Width : 5-19mm

Control System : PLC in Chinese and English

Screw diameter (mm) : 90mm

Warranty : 1 Year

Strap Thickness : 0.4-1.2mm

Contact Now

Single Double Screw 350kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

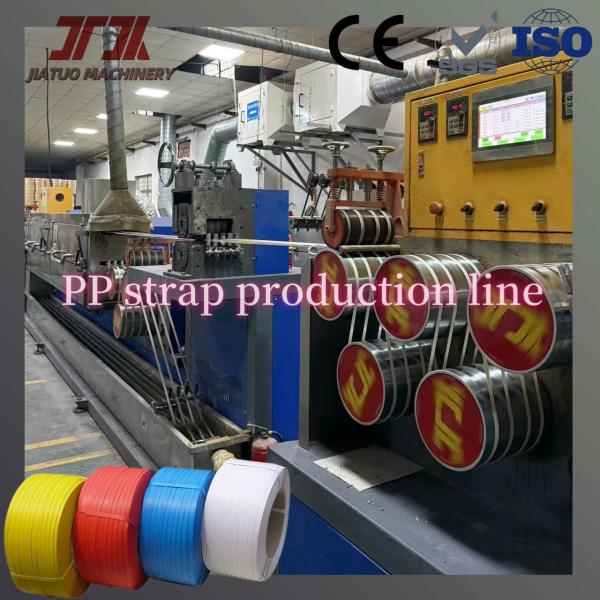

Product Description of PP Strap Making Machine

PP strapping extrusion line is an advanced, efficient and economical polypropylene strapping tape production line. This line is designed to meet the needs of high-quality production and can process recycled and new materials. The strapping width of this line ranges from 5-19 mm, equipped with an automatic winding system, and the production capacity is up to 260 kg/hour (according to customer requirements). It is the best choice for the production of polypropylene strapping tape and PP strapping. We can make it lighter in weight, in order to save more use costs for customers, it is the best choice for strapping machine investment.

Technical Parameters of pp strap production line

Parameter	Value
Product Name	PP Strap Band Extrusion Line
Total Power	100KW
Production capacity	260-300kg/h
Screw Material	38CrMoALA
Screw diameter (mm)	110mm
Take-up System	Automatic Take-up
Warranty	1 Year
Control System	PLC
Strap Strength	≥350N/mm
Video outgoing-inspection	Provided

High quality single screw extruder

Adopted with Xinjie computer system. Directly driven frequency motor 38CrMoAl materials 90mm screw with special design for pet strap extrusion.

Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

High quality stretching system

Perfect design heating oven system and using 18-30kw motor to drive stretching rollers, it will ensure good strap drawing rate.

1. Stretch ratio: 10-15 times (adjustable)

2. Line speed: >250-300 m/min

Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

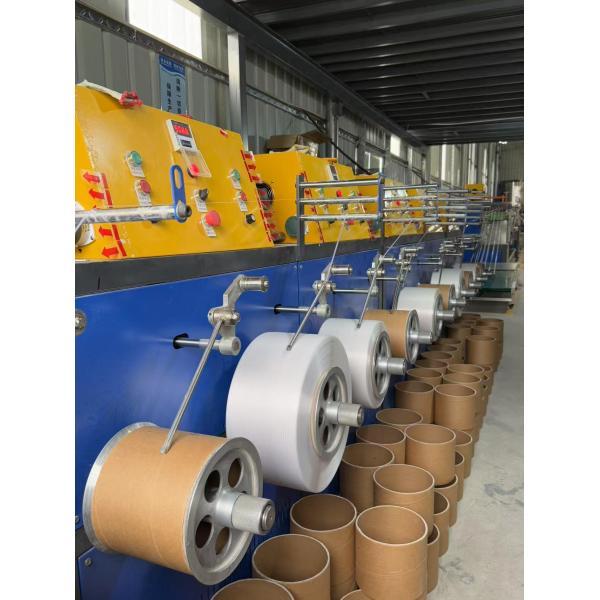

Semi-Automatic winder

1. Double station winding machine

2. Paper core specification: ￠200*180 (mm)

3. Torque motor: 6 Nm

4. Return shaft size: ￠32*180mm (imported from Taiwan)

5. Counter/coder: Taiwan Yangming

Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

Our service

1. we given client the details technician offer, sign the sales contract etc
2. we supply the details layout, installation instruction, technician support for the clients
3. we arrange engineer to install the machinery and training the workers for client
4. We have 24hours team to solve the after sales problem
5. We have free spare parts with the machine
6. We supply long term spare parts for every customer
7. We always up date the new technology to every customer
